Measuring Blinds for a Square Bay Window
Measuring for Square / Box Windows

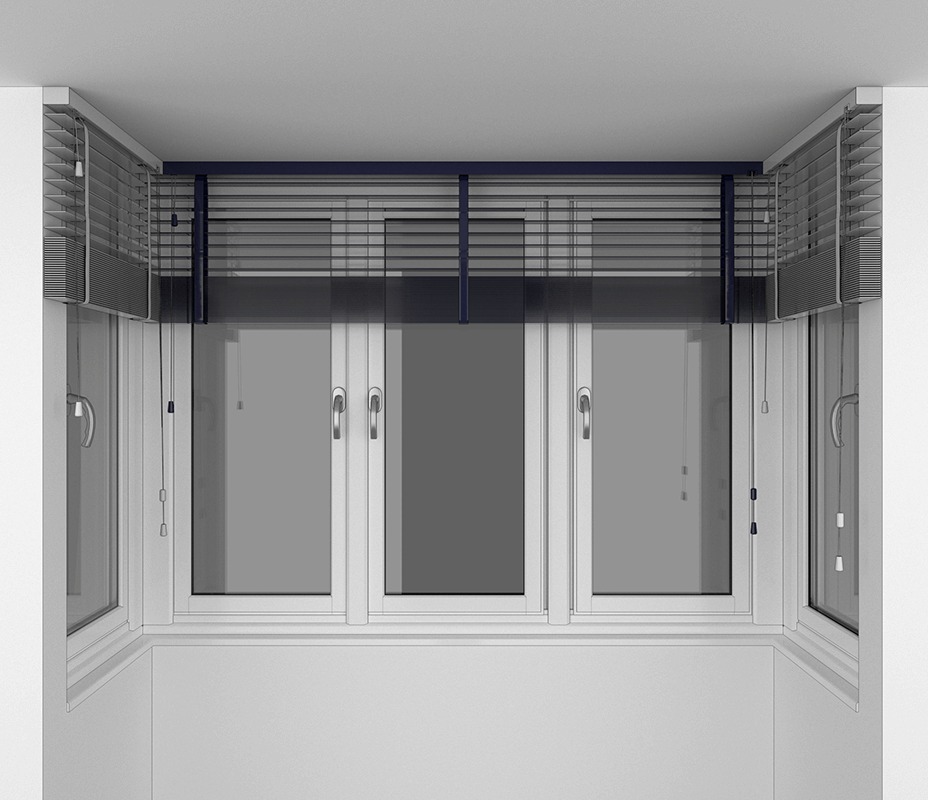

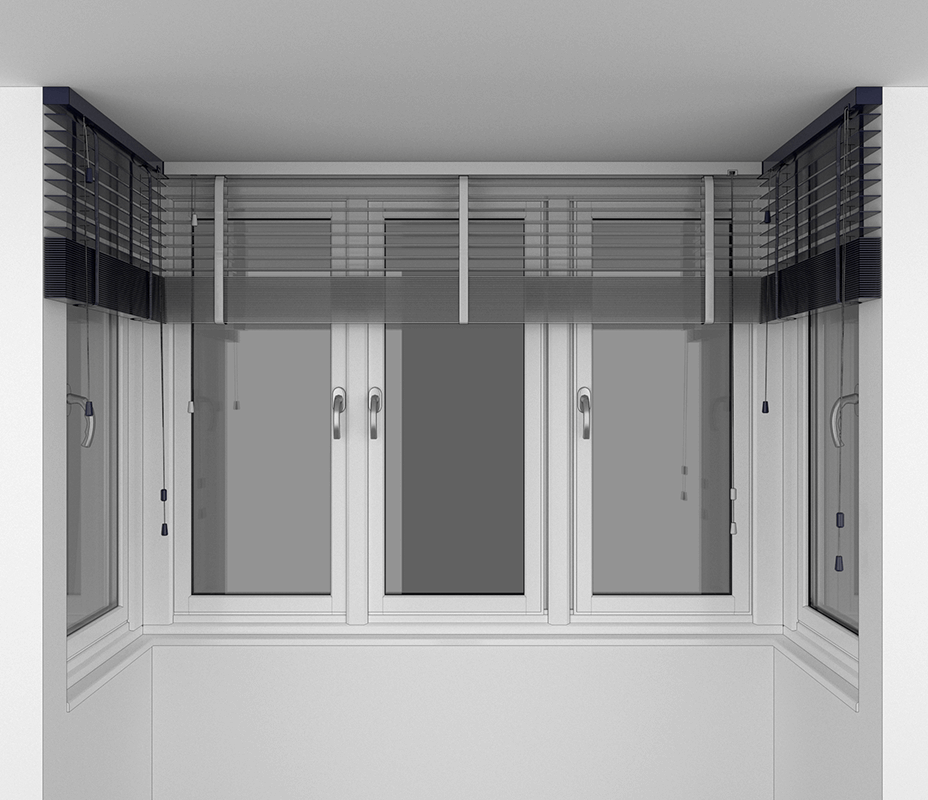

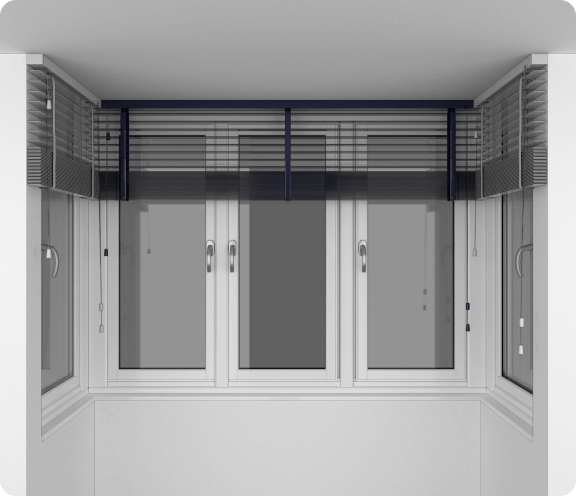

Front Primary
Your front blind will span the entire width of your bay window. The two side return blinds will overlap the
large blind at the front.

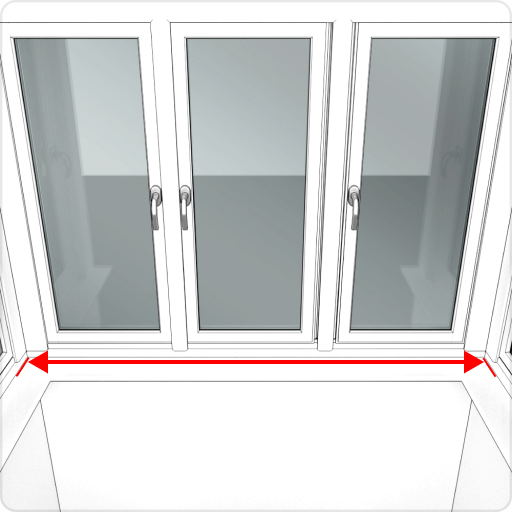

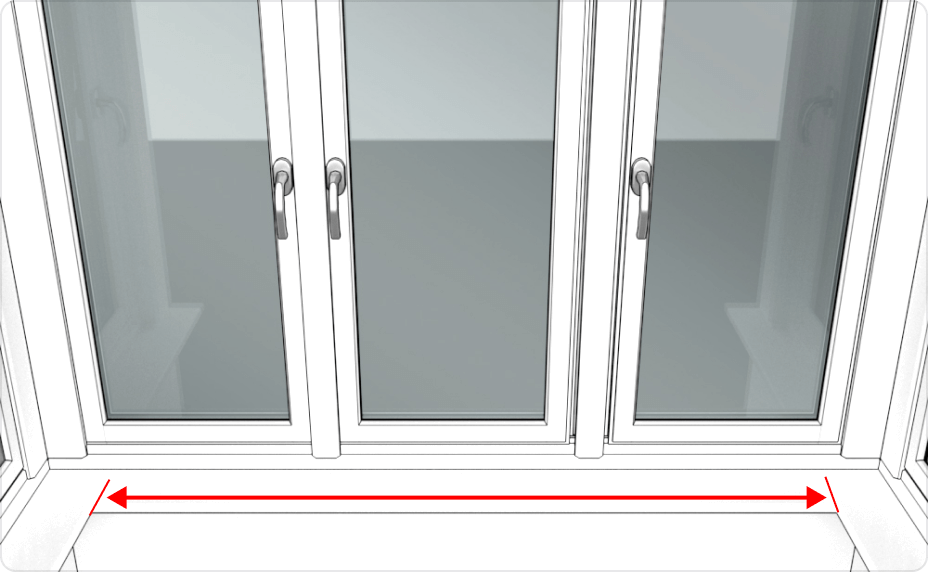

Measure the width - Front
Measure the full width of the long window at the front of your bay window.
Use this as the width measurement for your front window blind.
Obstruction checks

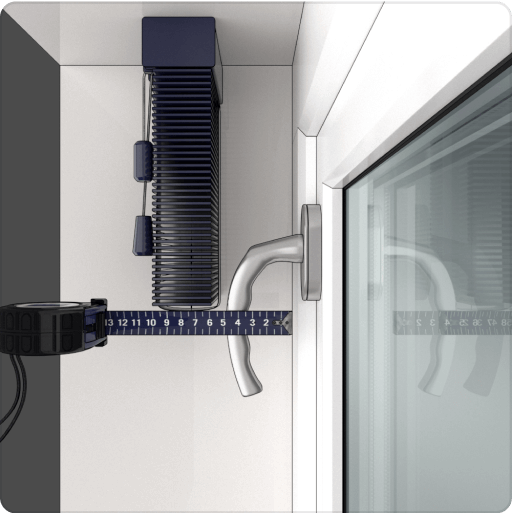

Check your obstruction depth
Measure the distance from the frame of your window to the outside of any
obstructions, such as handles or vents. Make a note of this measurement.
Calculate the depth
For your front window blind, add the depth of any window obstructions such as handles to
the depth of the headrail. For wooden blinds this is 7.5cm.
Helpful Hints

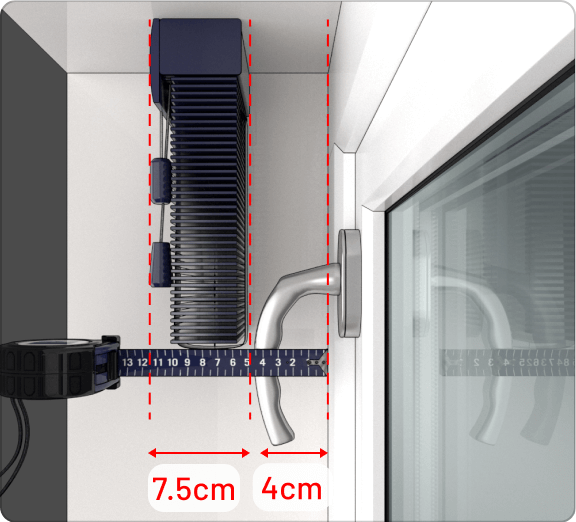

Calculation example
If your window handle protrudes 4cm from your window frame, your calculation would
be 7.5cm + 4cm. So a total depth of 11.5cm.
Take note of your total depth
You will need your total depth measurement to accurately measure the width of your
return blinds in the steps to follow.
Blind Type | Depth |
---|---|
50mm Wooden | 75mm |
35mm Wooden | 65mm |
25mm Wooden | 55mm |
Roller - Top Fix | 50mm |
Roller - Face Fix | 75mm |
Vertical | 75mm |
Day & Night | 75mm |
Roman | 50mm |
25mm Aluminium | 30mm |
35mm Aluminium | 50mm |
50mm Aluminium | 65mm |

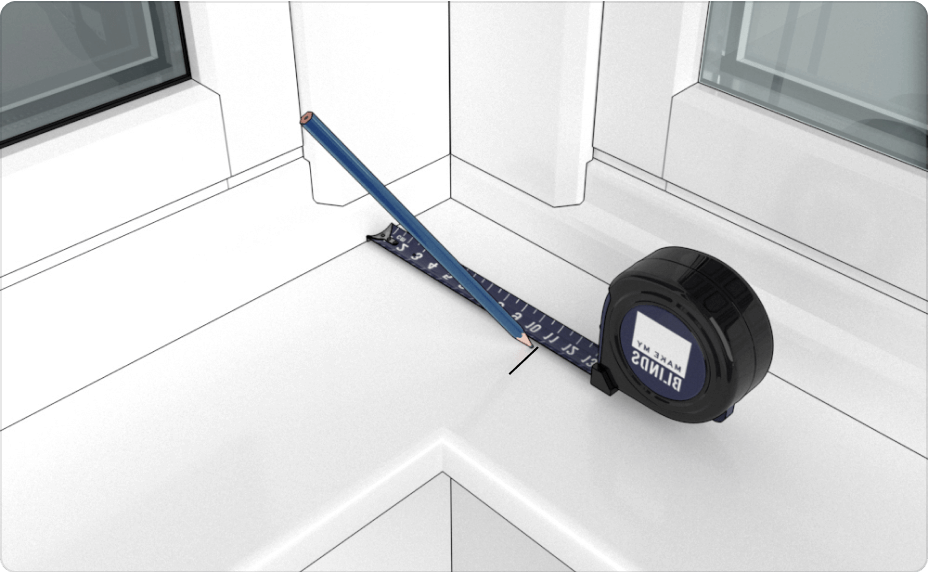

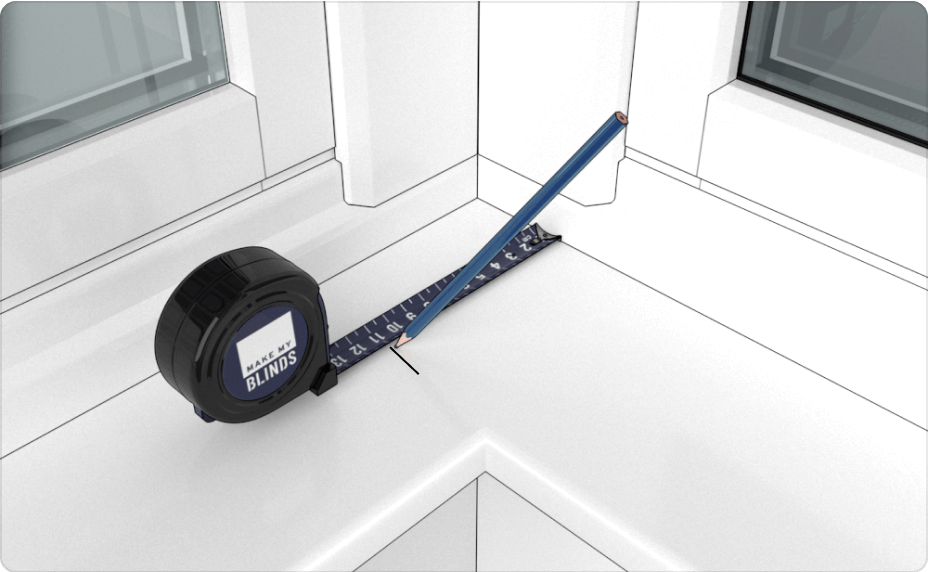

Mark your total depth
Mark the total depth of your front window blind on each side of your square bay window.

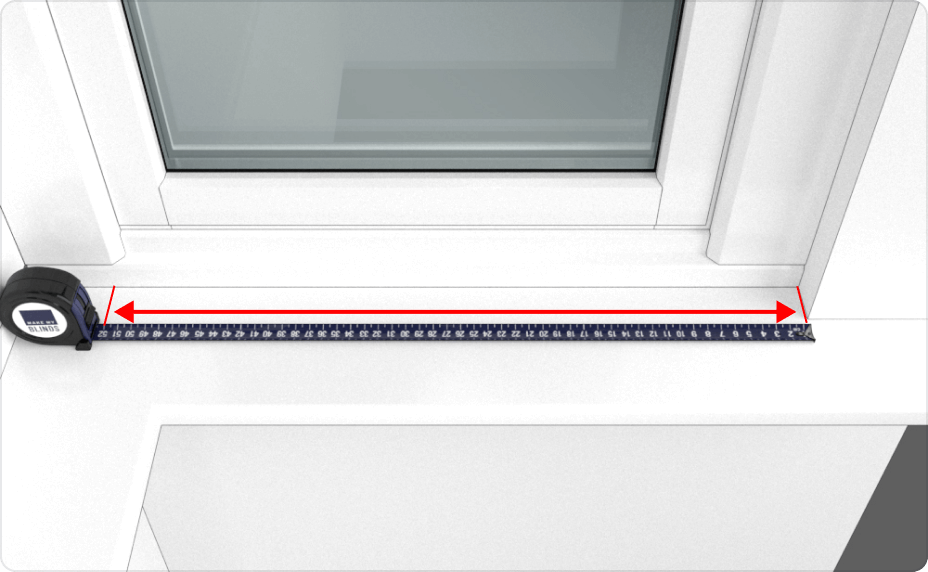

Measure side windows
Measure from the total depth mark (which includes the depth of the blind headrail) to where you would like
your return blind to finish. This is the width measurement of your return blind. Repeat this step for both
return blinds.

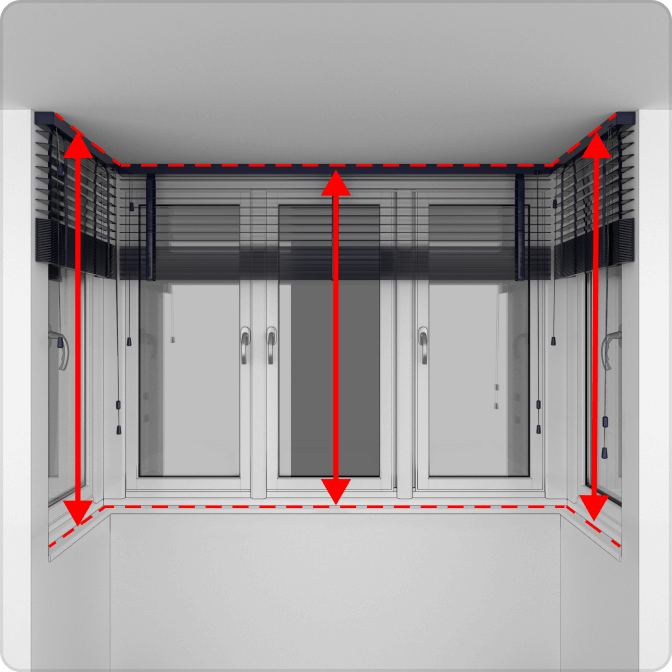

Measure the drop
Measure the height of your square bay window in three places.
Use the smallest measurement as your drop for all blinds.
Final step
Now enter your width and drop measurement, then select Recess as your sizing option. Repeat the process for
your side window 1 and 2.
Enter your
Width
cm
Enter your
Drop
cm
Sizing
Deductions
We will make a small deduction to the width of your blind when
you select the ‘Recess’ sizing option to accommodate the brackets.
Measuring for Wooden Blinds
Measuring for Square / Box Windows
Side Primary
Your side blinds will span the total depth of your square bay window and the front blind will sit between
your two side blinds.

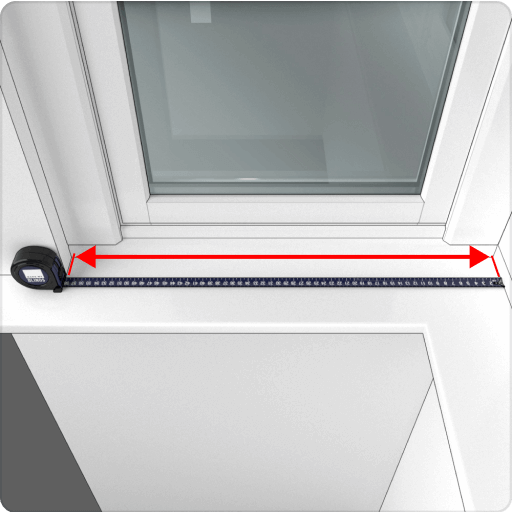

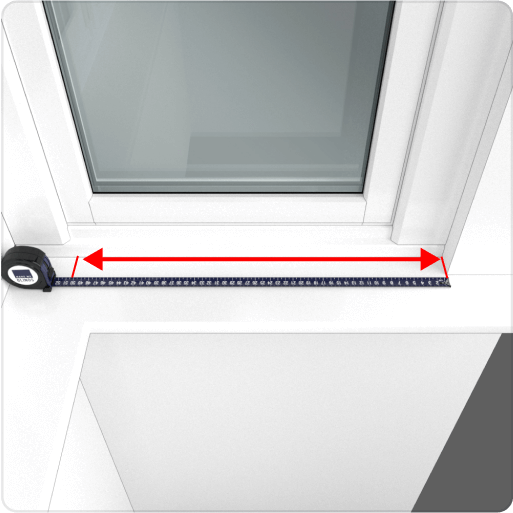

Measure the width - Side
Measure the full width of the windows at the side of your bay window.
Use this as the width measurement for your side window blinds.
Obstruction checks

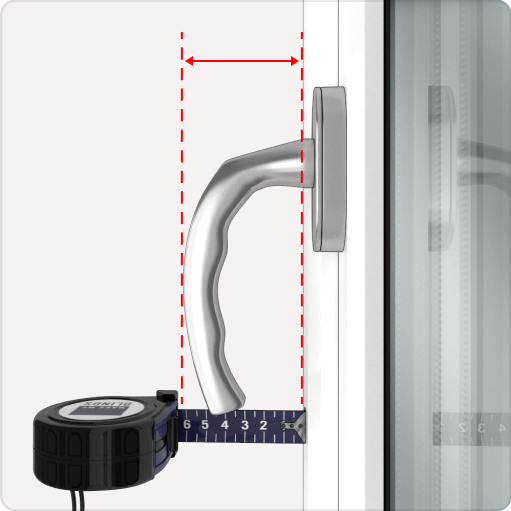

Check your obstruction depth
Measure the distance from the frame of your window to the outside of any
obstructions, such as handles or vents. Make a note of this measurement.
Calculate the depth
For your side window blinds, add the depth of any window obstructions such as handles to
the depth of the headrail. For wooden blinds this is 7.5cm.
Helpful Hints
Calculation example
If your window handle protrudes 4cm from your window frame, your calculation would
be 7.5cm + 4cm. So a total depth of 11.5cm.
Take note of your total depth
You will need your total depth measurement to accurately measure the width of your
angled bay window blinds in the steps to follow.
Blind Type | Depth |
---|---|
50mm Wooden | 75mm |
35mm Wooden | 65mm |
25mm Wooden | 55mm |
Roller - Top Fix | 50mm |
Roller - Face Fix | 75mm |
Vertical | 75mm |
Day & Night | 75mm |
Roman | 50mm |
25mm Aluminium | 30mm |
35mm Aluminium | 50mm |
50mm Aluminium | 65mm |

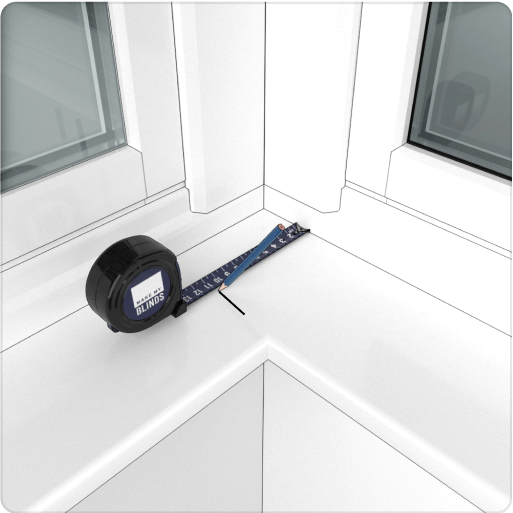

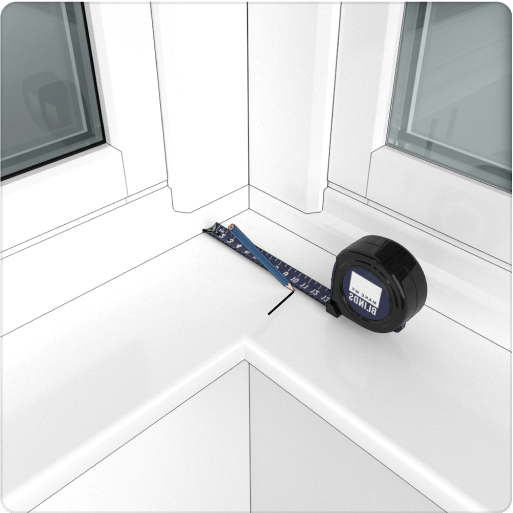

Mark your total depth
Mark the total depth of your side window blinds on each side of your square bay window.

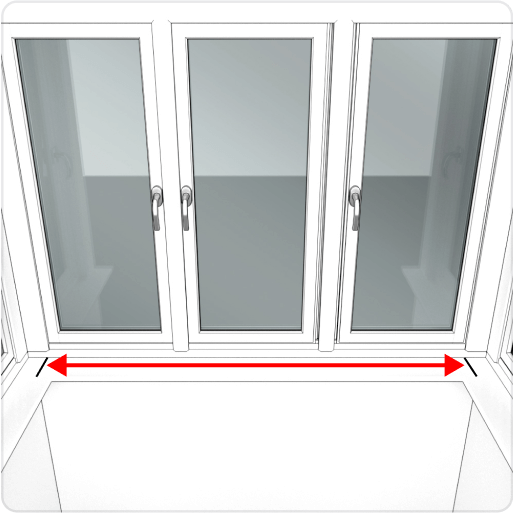

Measure front windows
Measure from one of the pencil marks on one side to the other on the other side. The distance will be the
width of your front window.
Measure the drop
Measure the height of your square bay window in three places.
Use the smallest measurement as your drop for all blinds.
Final step
Now enter your width and drop measurement, then select Recess as your sizing option. Repeat the process for
your side window 1 and 2.
Enter your
Width
cm
Enter your
Drop
cm
Sizing
Deductions
We will make a small deduction to the width of your blind when
you select the ‘Recess’ sizing option to accommodate the brackets.
