Measuring for Venetian Blinds Inside Window Recess
Use this method if you would like your new venetian blind to be mounted within your window recess.
We recommend watching our how to measure video guide first.
Measure the width
Measure the width of your window recess in three places, at the depth you'd like your
blind installed.
Use the smallest measurement as your width.
Use the smallest measurement as your width.
Important Checks
Check your recess depth
Ensure you have at least 3cm clearance
between the edge of any obstruction and the front of your window recess.
Width obstruction check
If you have any obstructions within your
recess such as tiles, measure between these two points and use this as your width
measurement.
Measure the drop
Measure the height of your window recess in three places.
Use the smallest measurement as your drop.
Final step
Now enter your width and drop measurements, then select Recess as your sizing
option.
Enter your
Width
cm
Enter your
Drop
cm
Sizing
Deductions
We will make a small deduction to the width of your blind when
you select the ‘Recess’ sizing option to accommodate the brackets.
Measuring for Venetian Blinds Exact Size
Use this method if you know exactly the width and the drop you require.
We recommend watching our how to measure video guide first.
Measure the width
Decide how much overlap you want your venetian blind to have on each side of your window
recess.
Measure this width.
Measure this width.
Important Checks

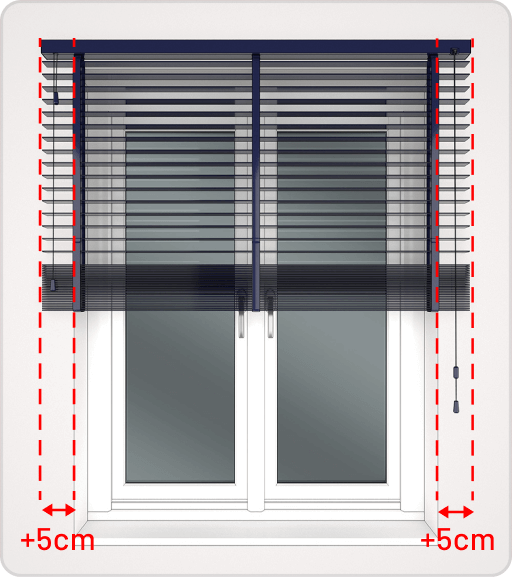

Left and Right Overlap
We recommend your venetian blind
overlaps your window recess by at least 5cm on each side (10cm overall).
For Greater Light Elimination
The more your venetian blind overlaps
your window recess, the more light you eliminate.
Measure the drop
Measure the height from where you want the top of the headrail to start, and the bottom
bar to finish. This is your drop measurement.
Important Checks
Top Overlap
We recommend your venetian blind
overlaps the top of your window recess by at least 7cm.
Bottom Overlap
The desired overlap at the bottom of your window recess is personal choice. Check
for obstructions such as radiators. If your window sill protudes more than 5cm, you
should stop your blind at this point.
Final step
Now enter your width and drop measurements, then select Exact as your sizing
option.
Enter your
Width
cm
Enter your
Drop
cm
Sizing
NO Deductions
We will not make any deductions to your measurements when you
select the `Exact` sizing option.
Measuring for Venetian Blinds
Use this measuring guide if you would like to split your window into multiple blinds. Great for large
windows or windows with a very defined split.
Mark your split point
With a pencil, make a small mark where you'd like
to split your venetian blinds.
Helpful Hints
Recommended Split Point
If you have a vertical window mullian or
door frame, we’d suggest using this as your split point. Alternatively use the
centre of the window you’re covering.
Please Note:
There will be a small gap between your
blinds to accommodate the brackets.
Measure the width
Measure between the edge of your window recess and your split point mark.
Use this measurement as your width.
Use this measurement as your width.
Important Note
Once installed you will have a gap of
0.5cm between your blinds. The gap will be determined by how close you install the
central brackets.
Helpful Hints
Outside Recess
If you're not installing your venetian
blind within the recess, measure from your split point to where you want your
venetian blind to finish.
Width obstruction check
If you have any obstructions within your
recess such as tiles, measure between these two points and use this as your width
measurement.
Measure the drop
Measure the height of your window recess in three places.
Use the smallest measurement as your drop for all the venetian blinds.
Final step
Now enter your width and drop measurements for each blind. Order each blind with
the ‘Recess’ sizing option.
Enter your
Width
cm
Enter your
Drop
cm
Sizing
Deductions
We will make a small deduction to the width of your blind when
you select the ‘Recess’ sizing option to accommodate the brackets.
